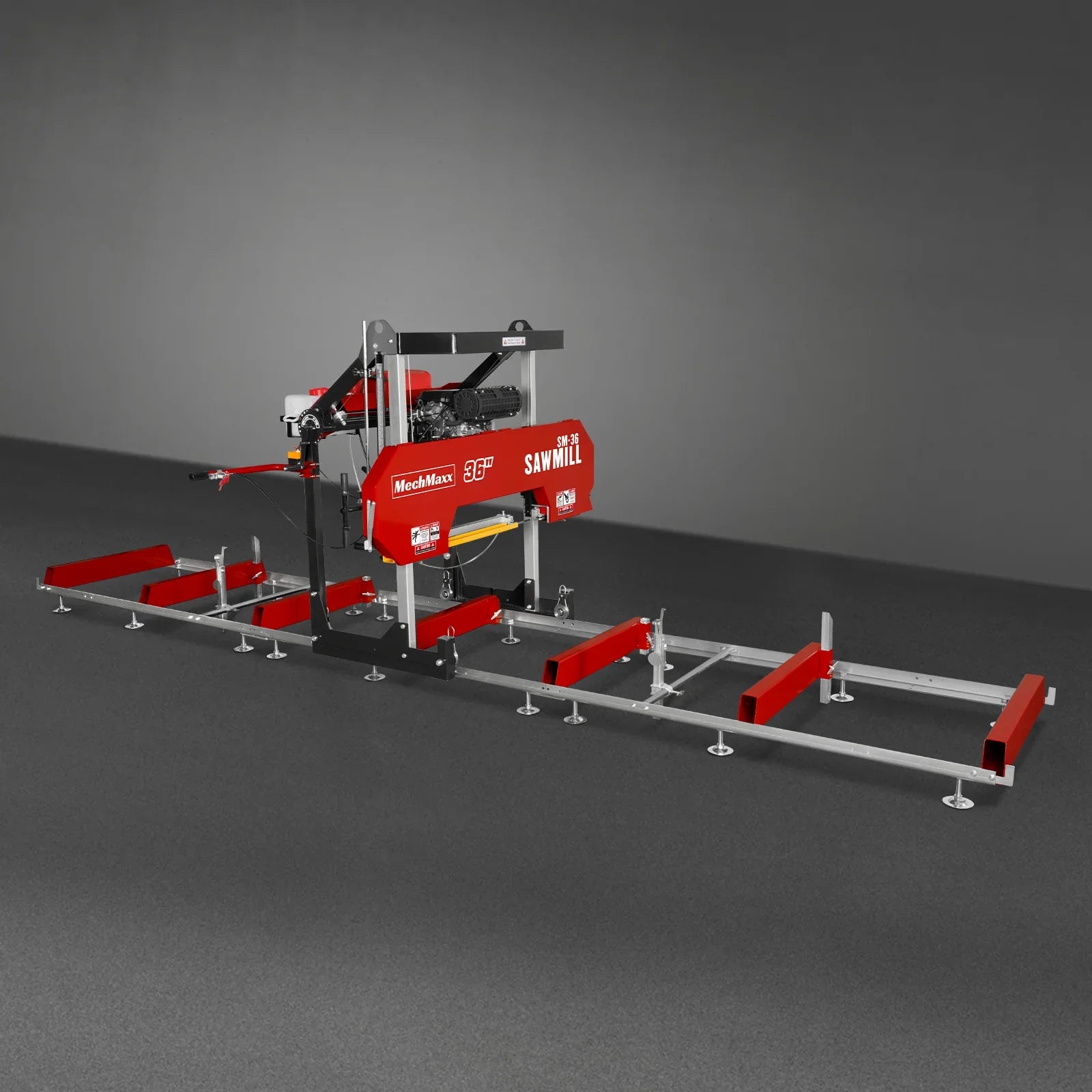

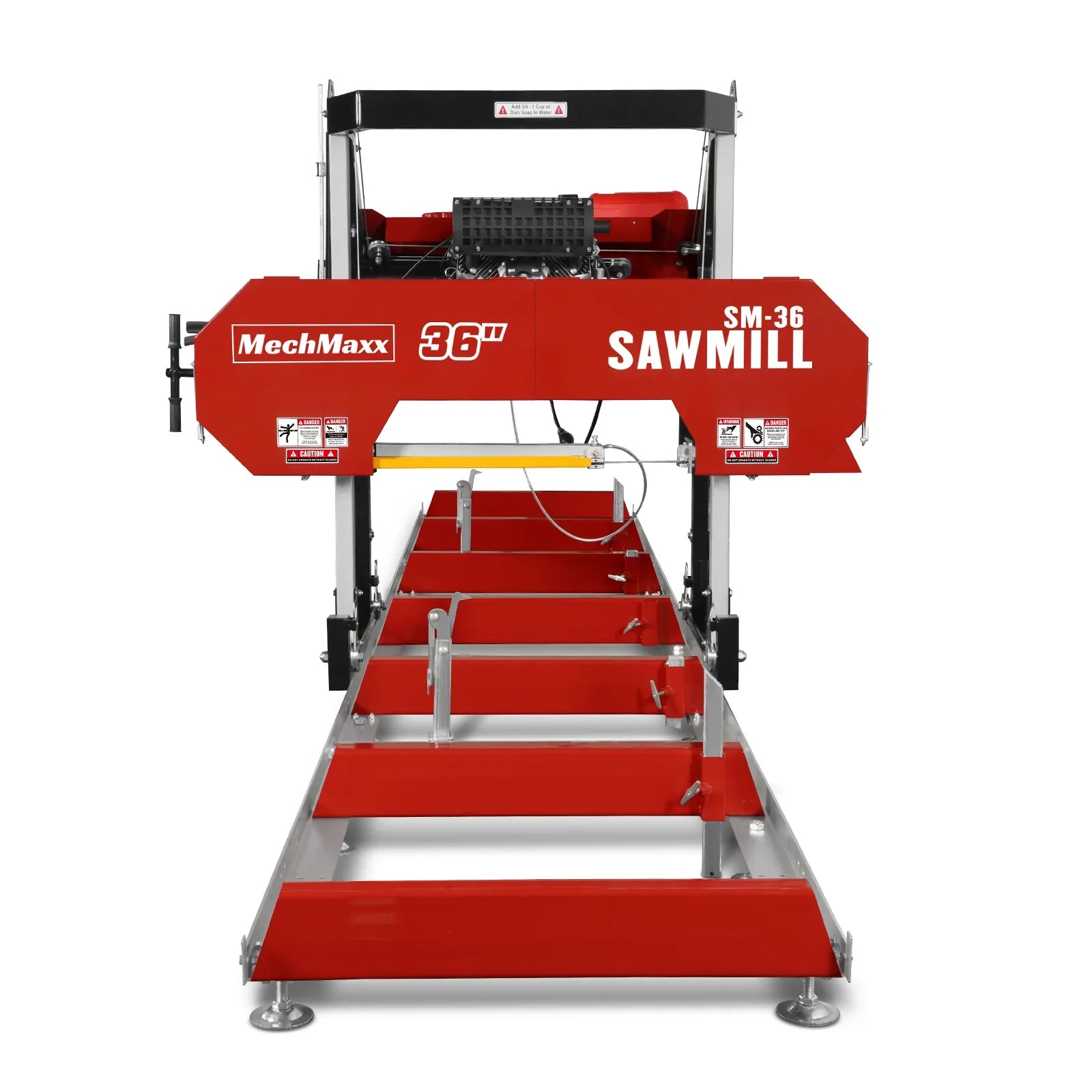

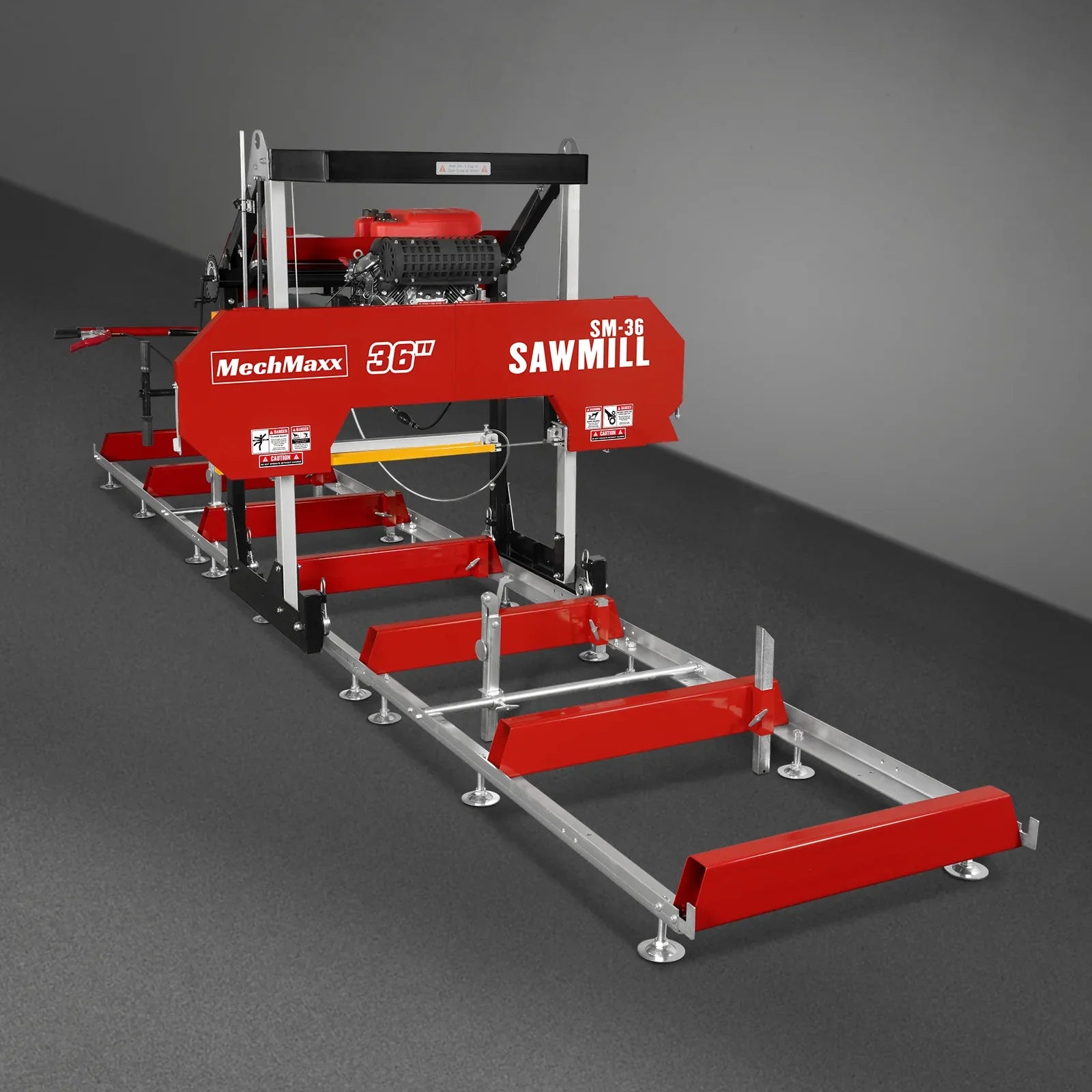

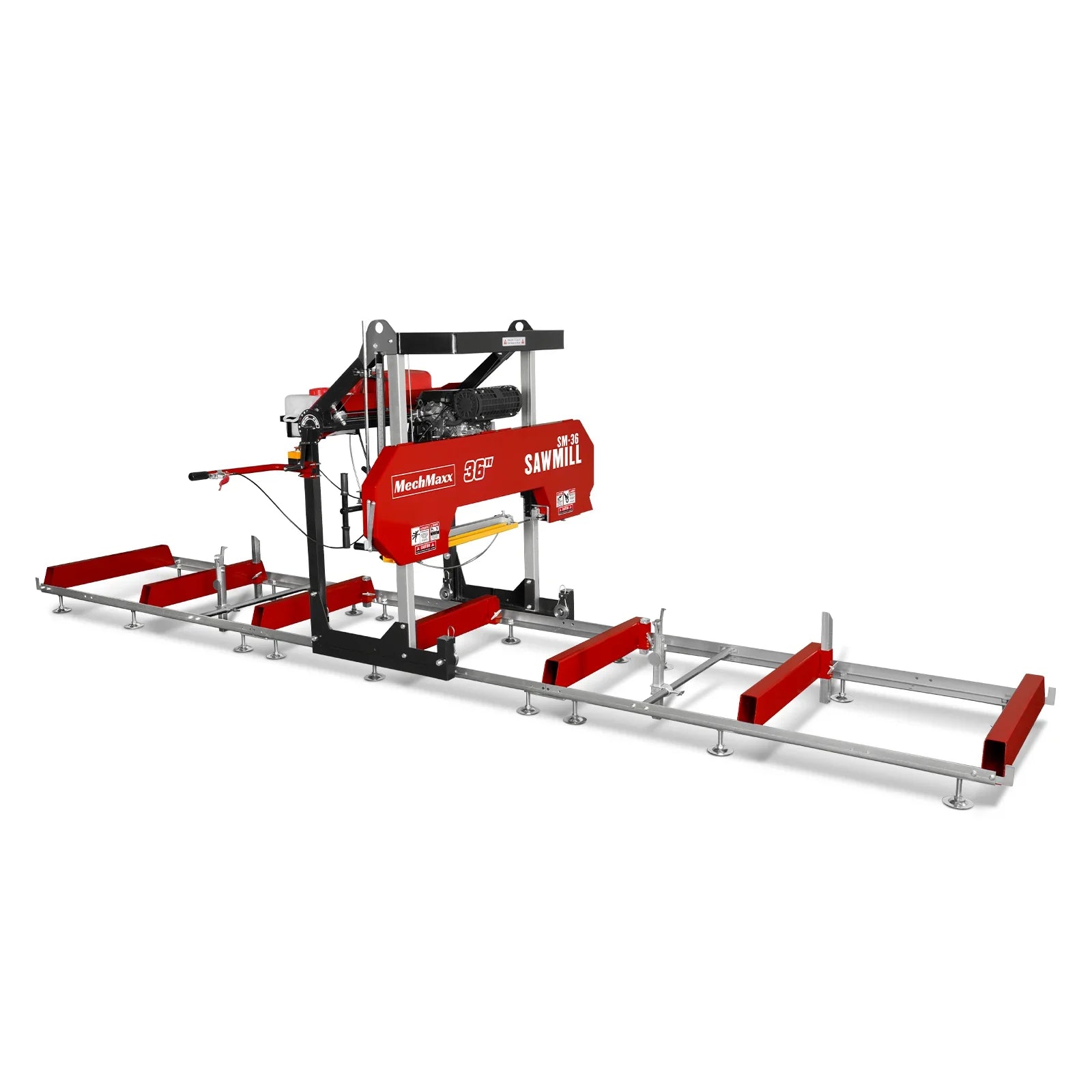

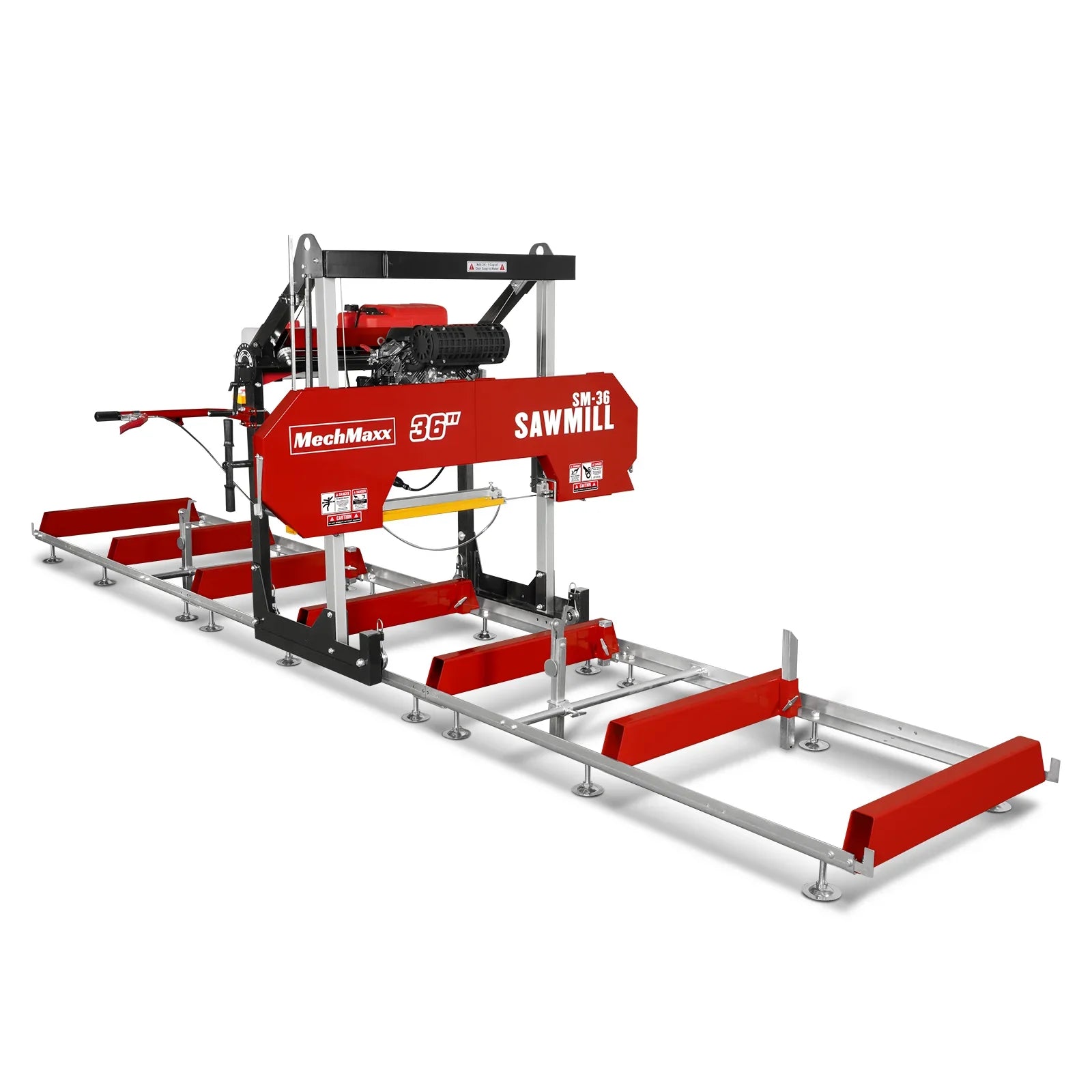

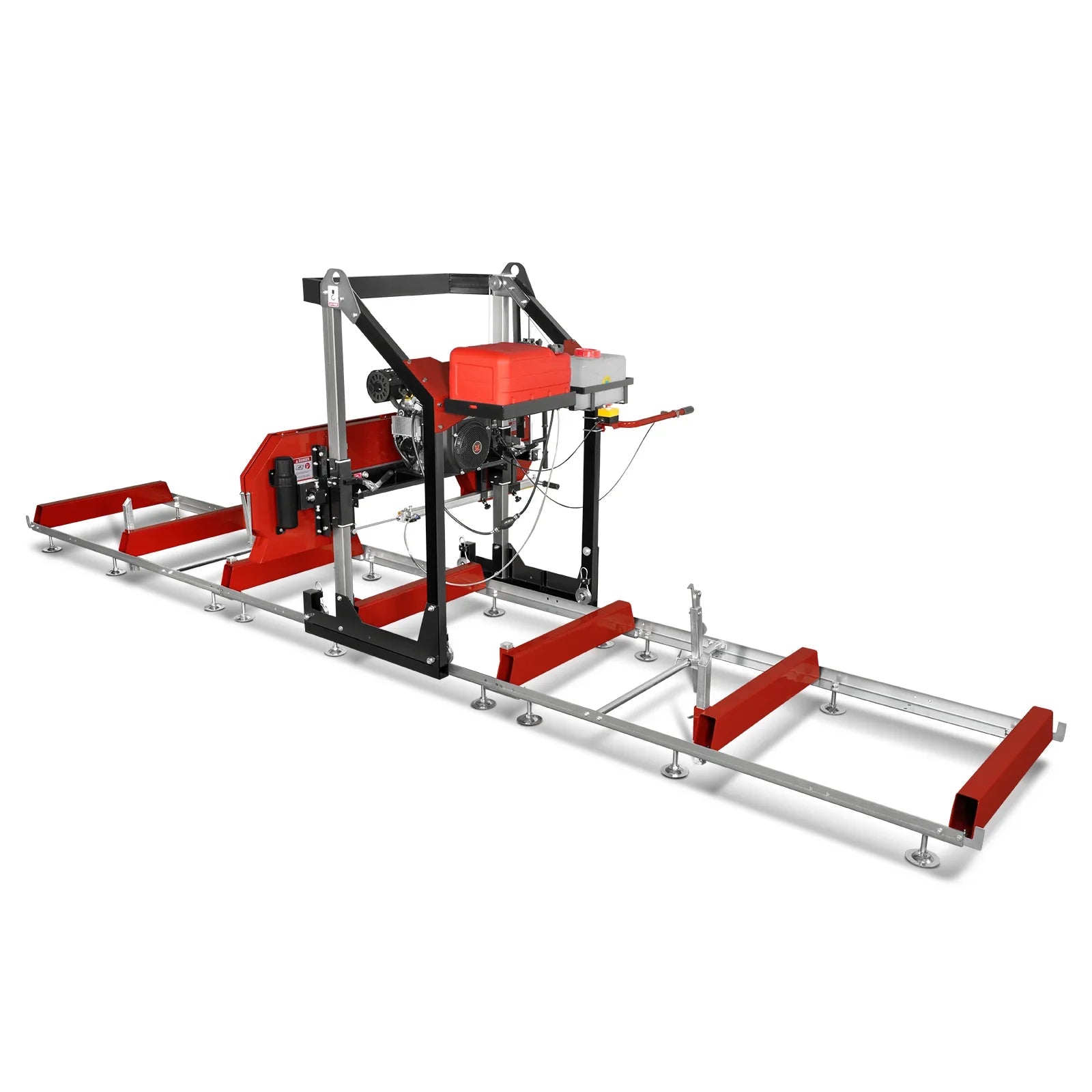

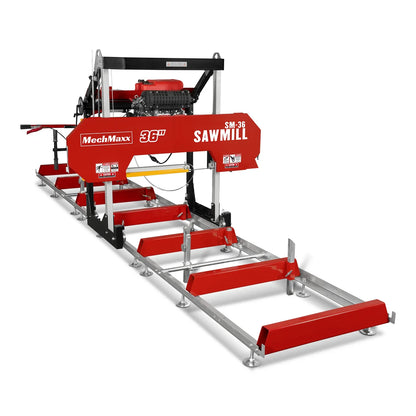

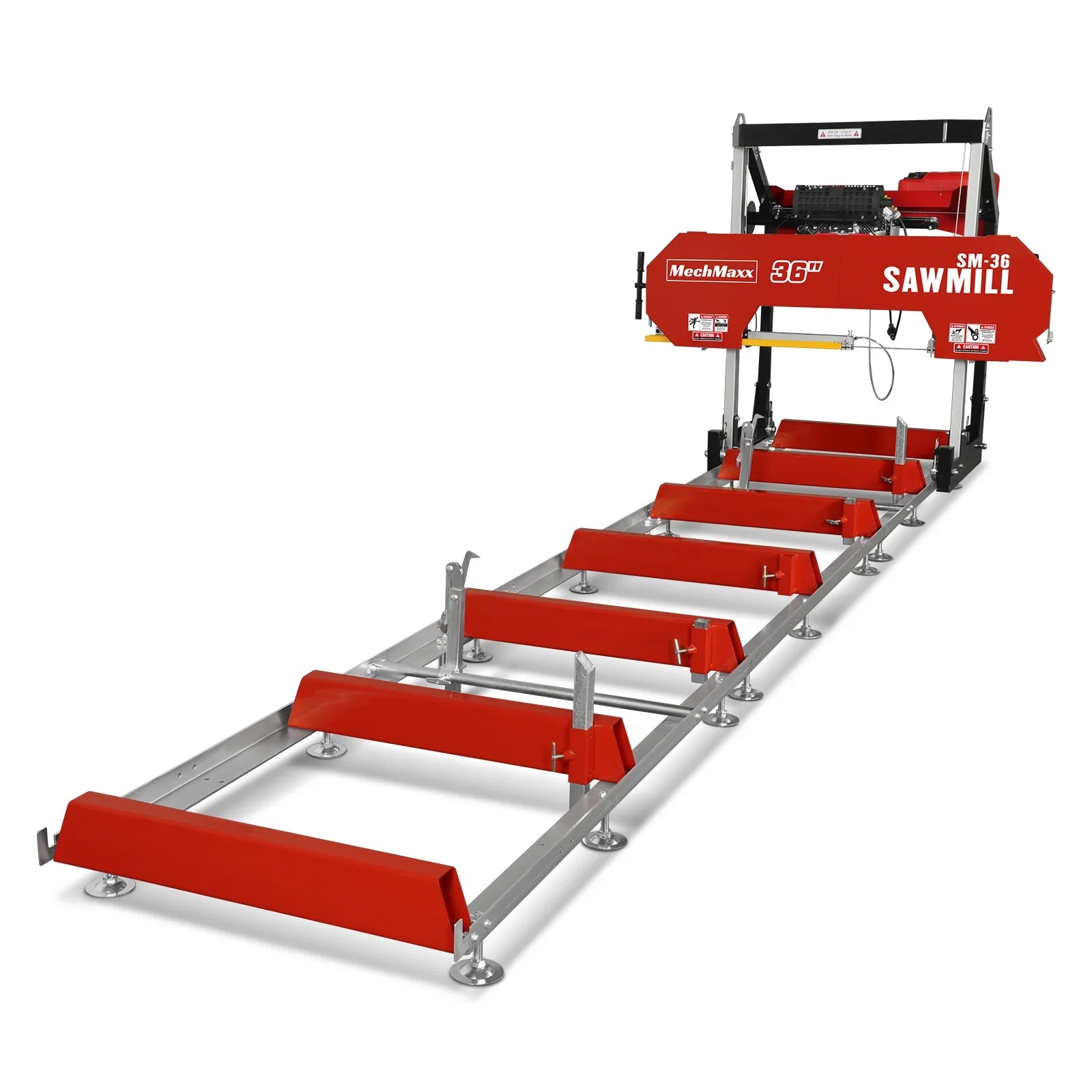

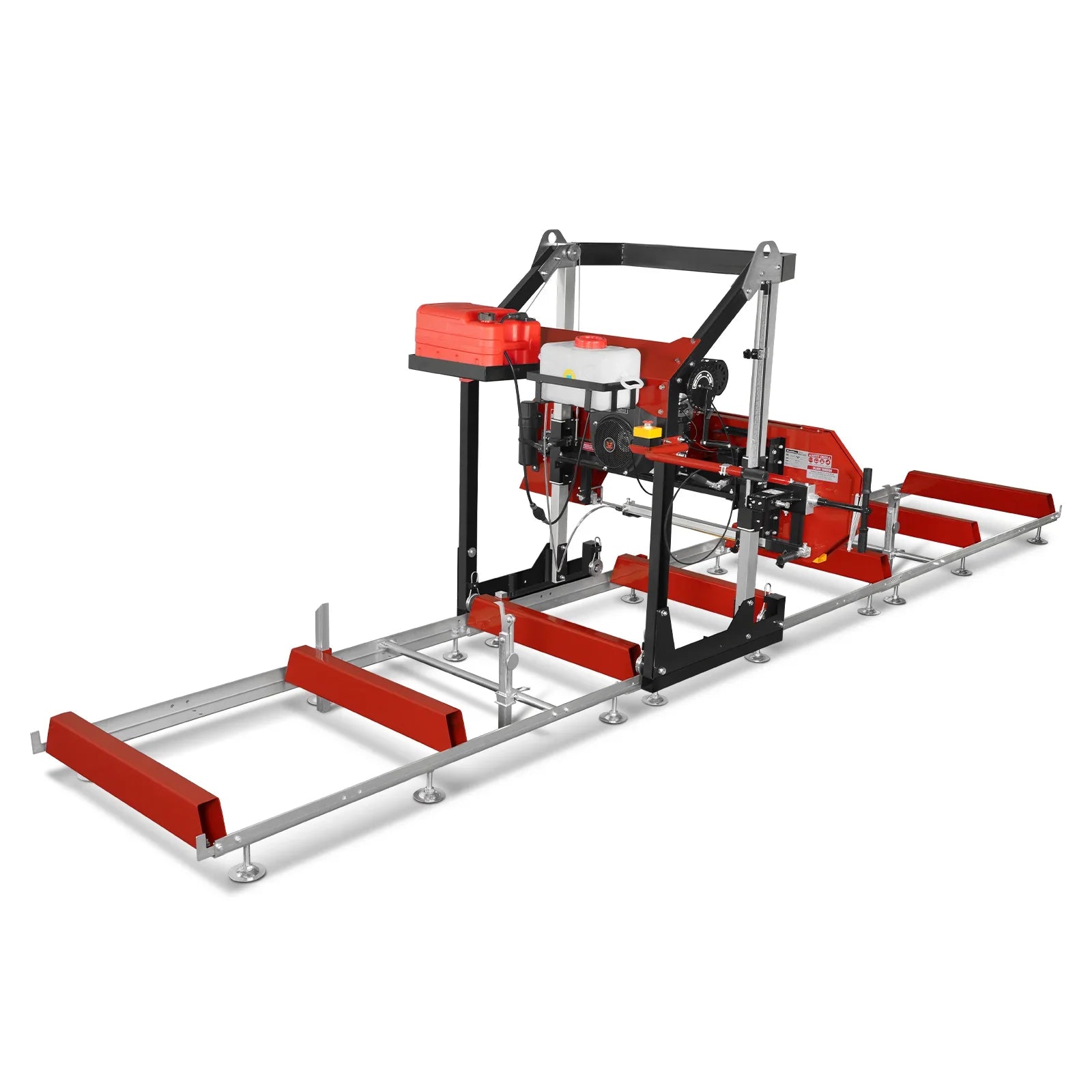

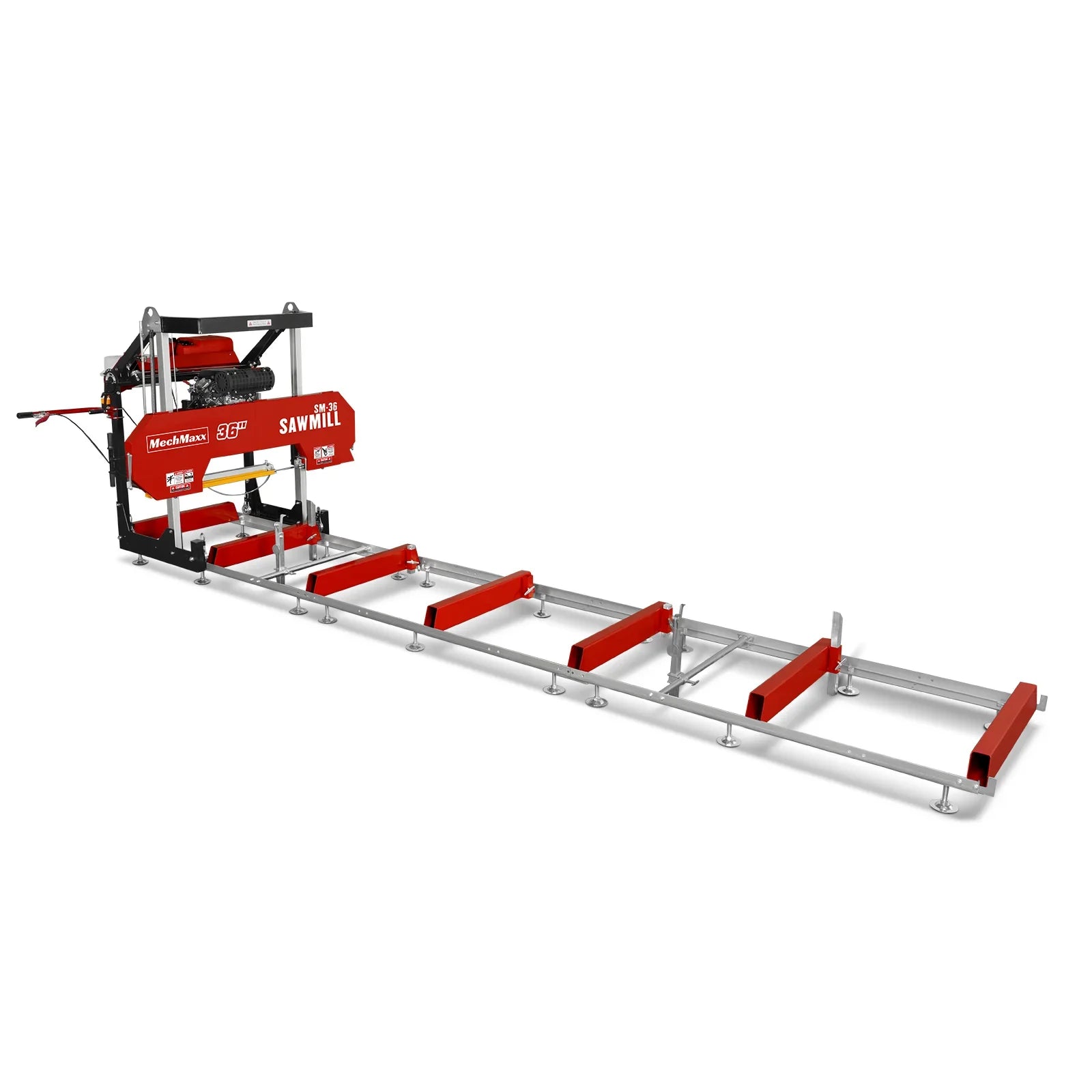

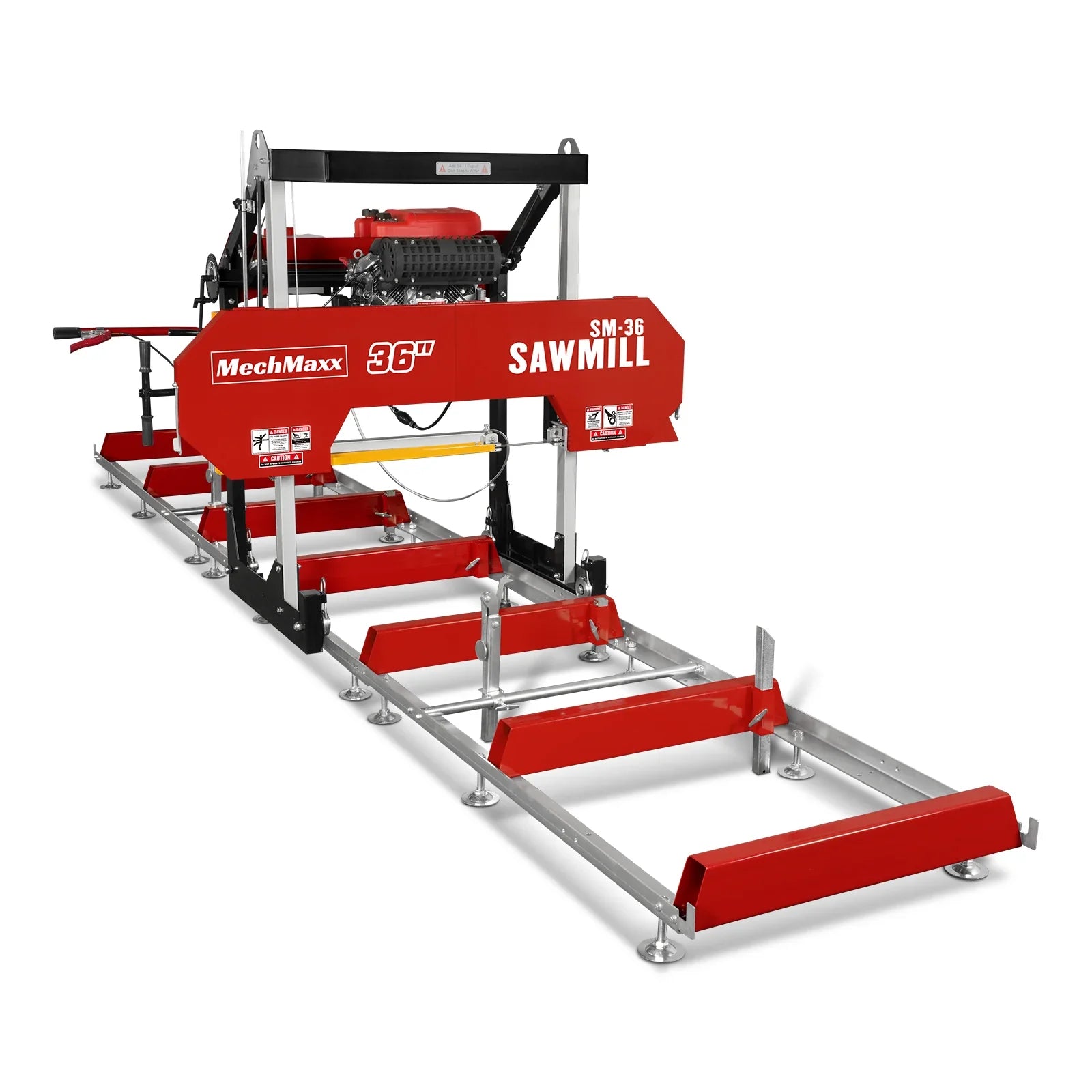

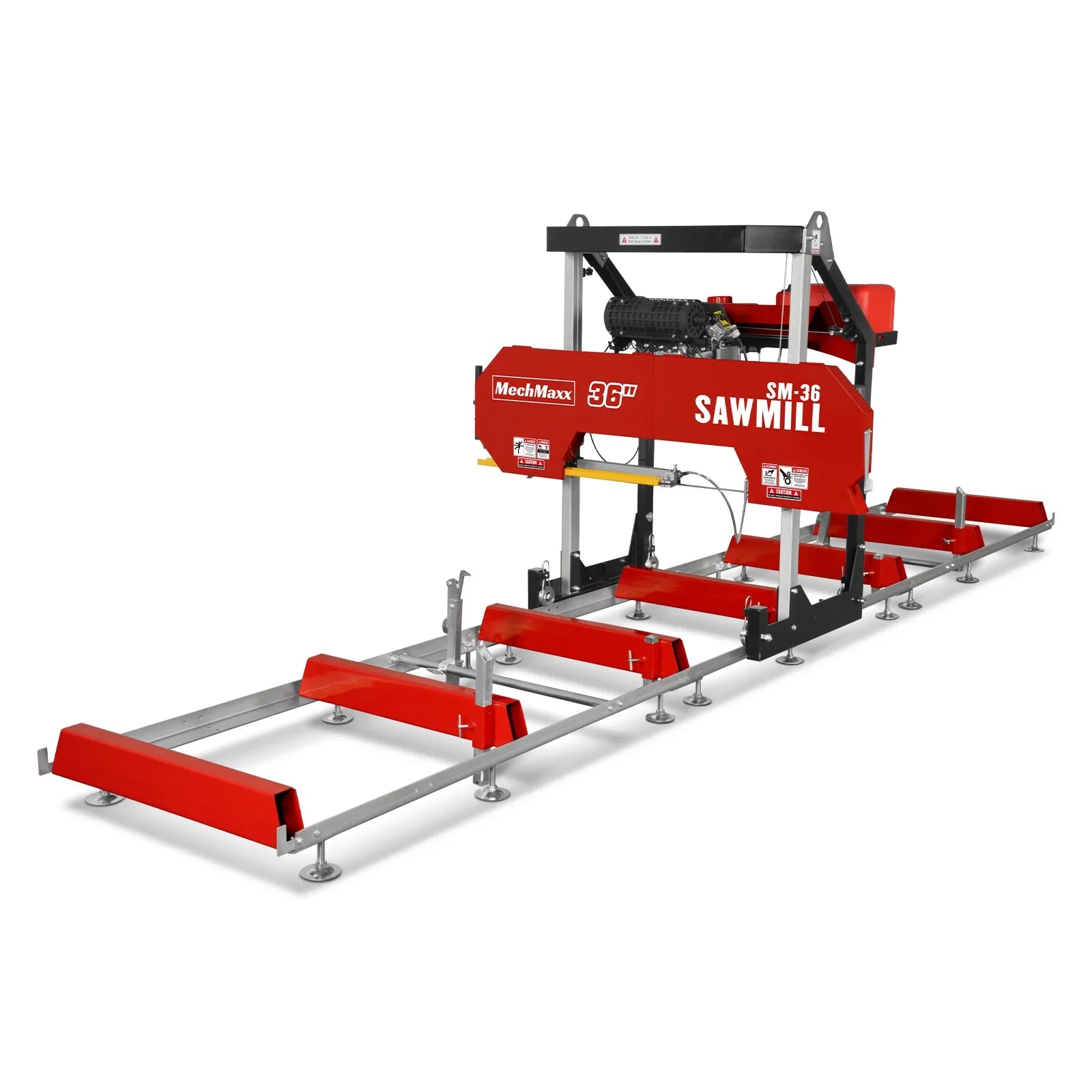

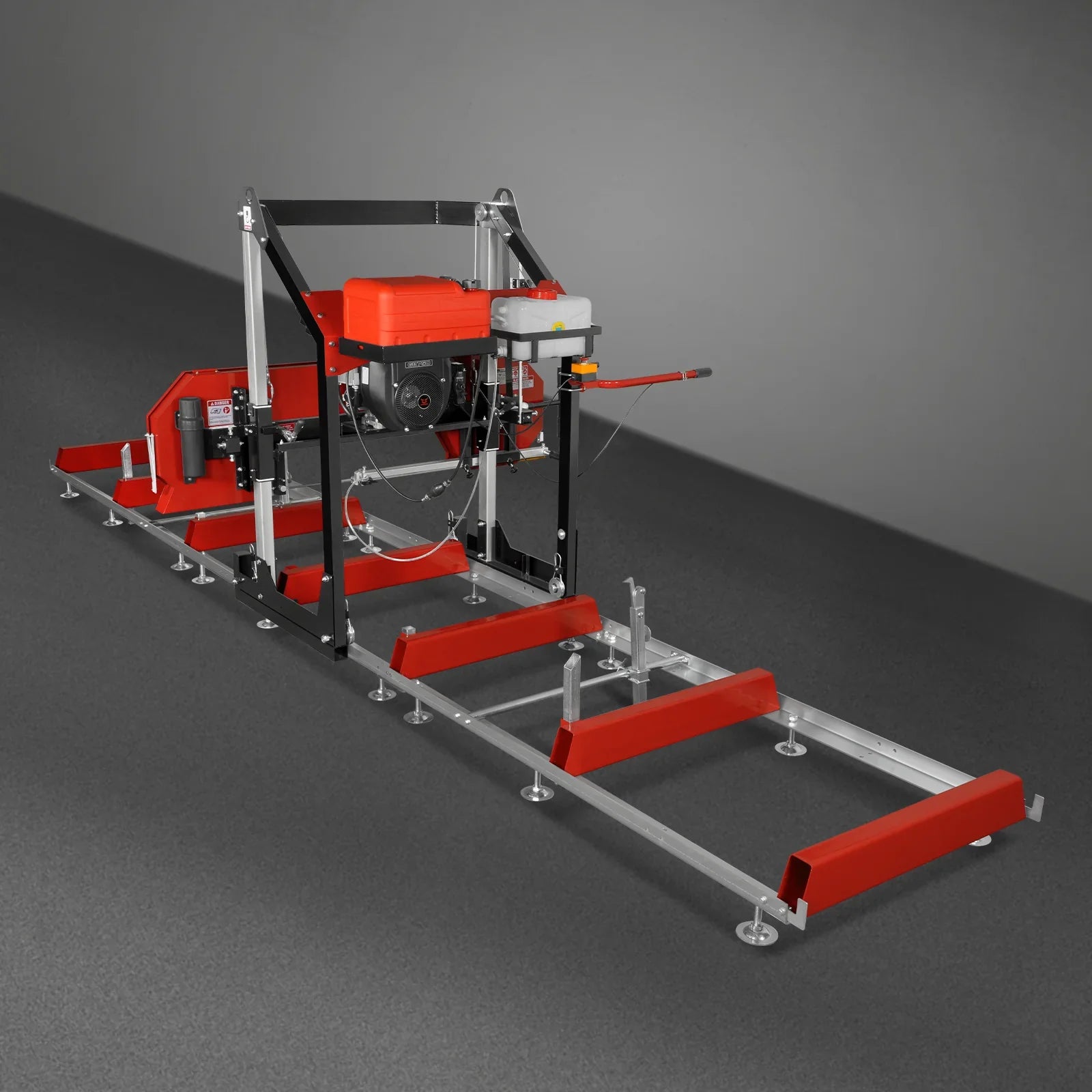

36" MAX Portable Sawmill, 25HP 750cc ZONSEN V-Twin Engine, 36" Board Width, 20' Track Length, (10 x Blades Included), SM-36MAX

• Fully capable of cutting large 36" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
• It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.

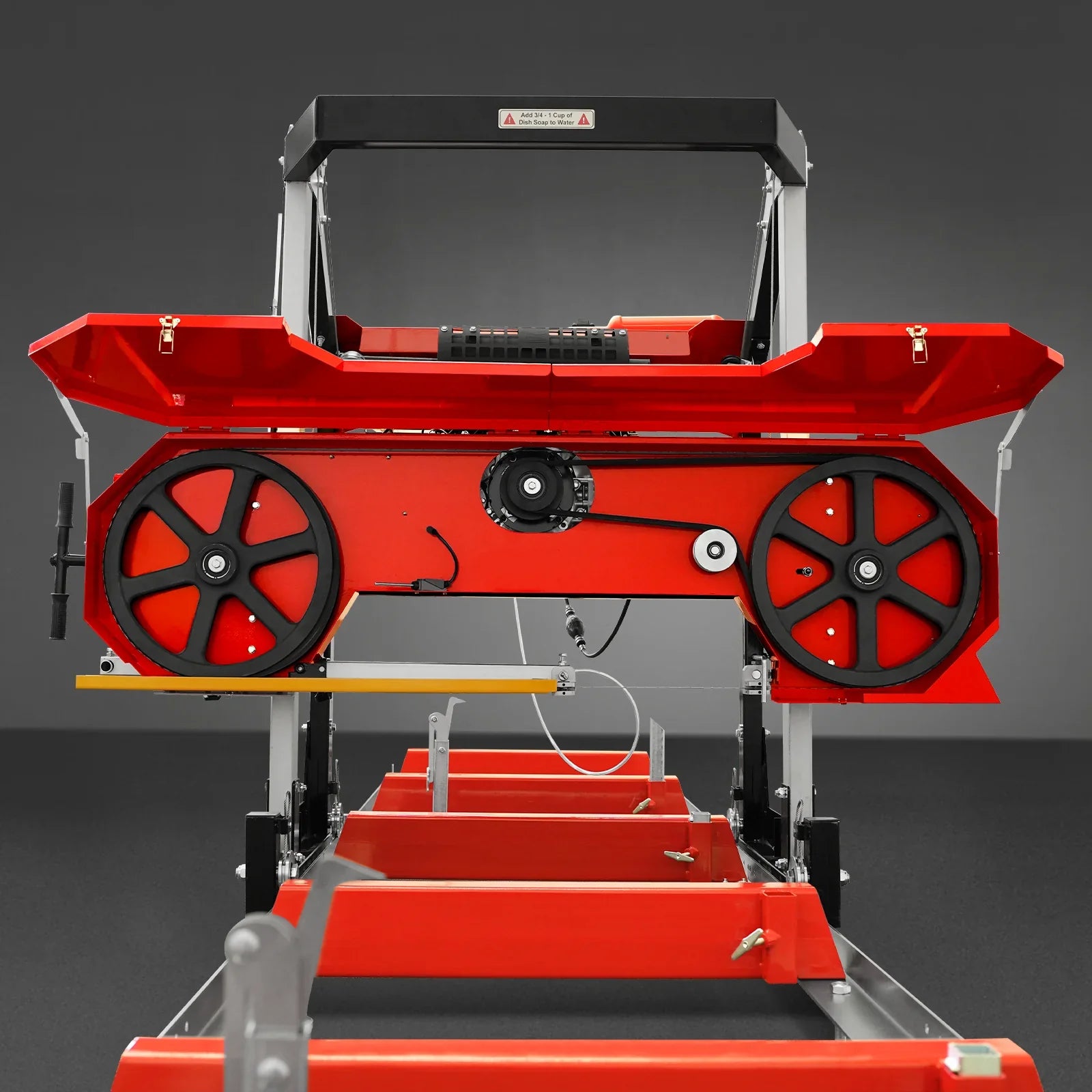

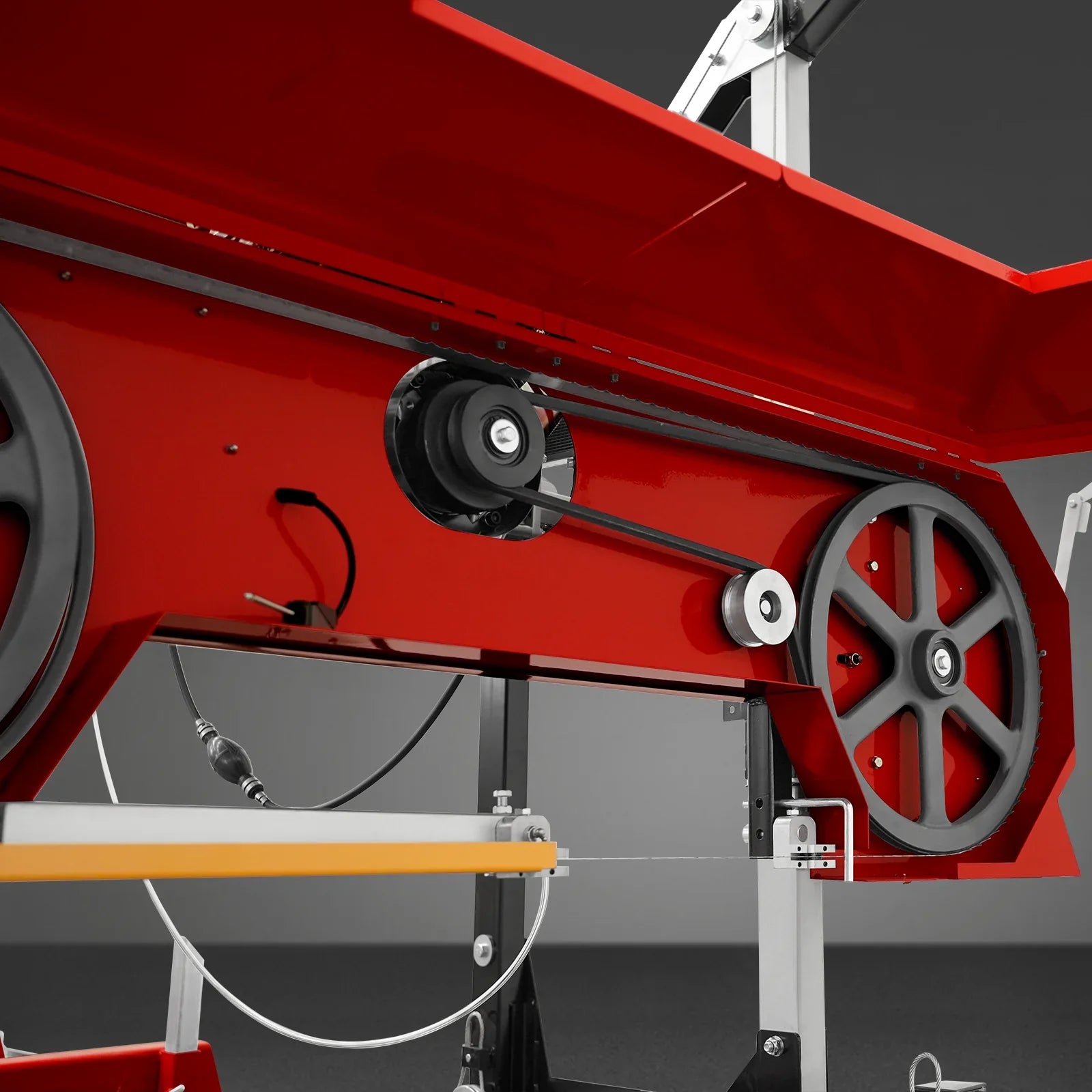

• The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
• Can withstand heavy workloads for long hours, even in remote areas.
• The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
• You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.

150168MAX Product manual 1.0.pdf

Zonsen GB750 Manual.pdf

Sawmill Quick Installation Guide.pdf

Product Features :

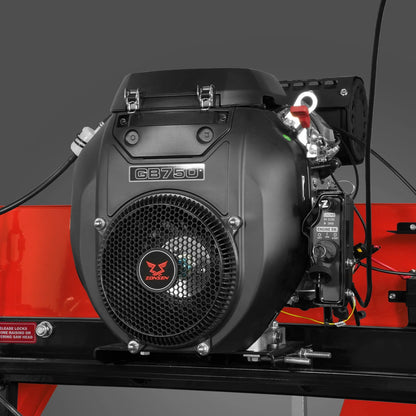

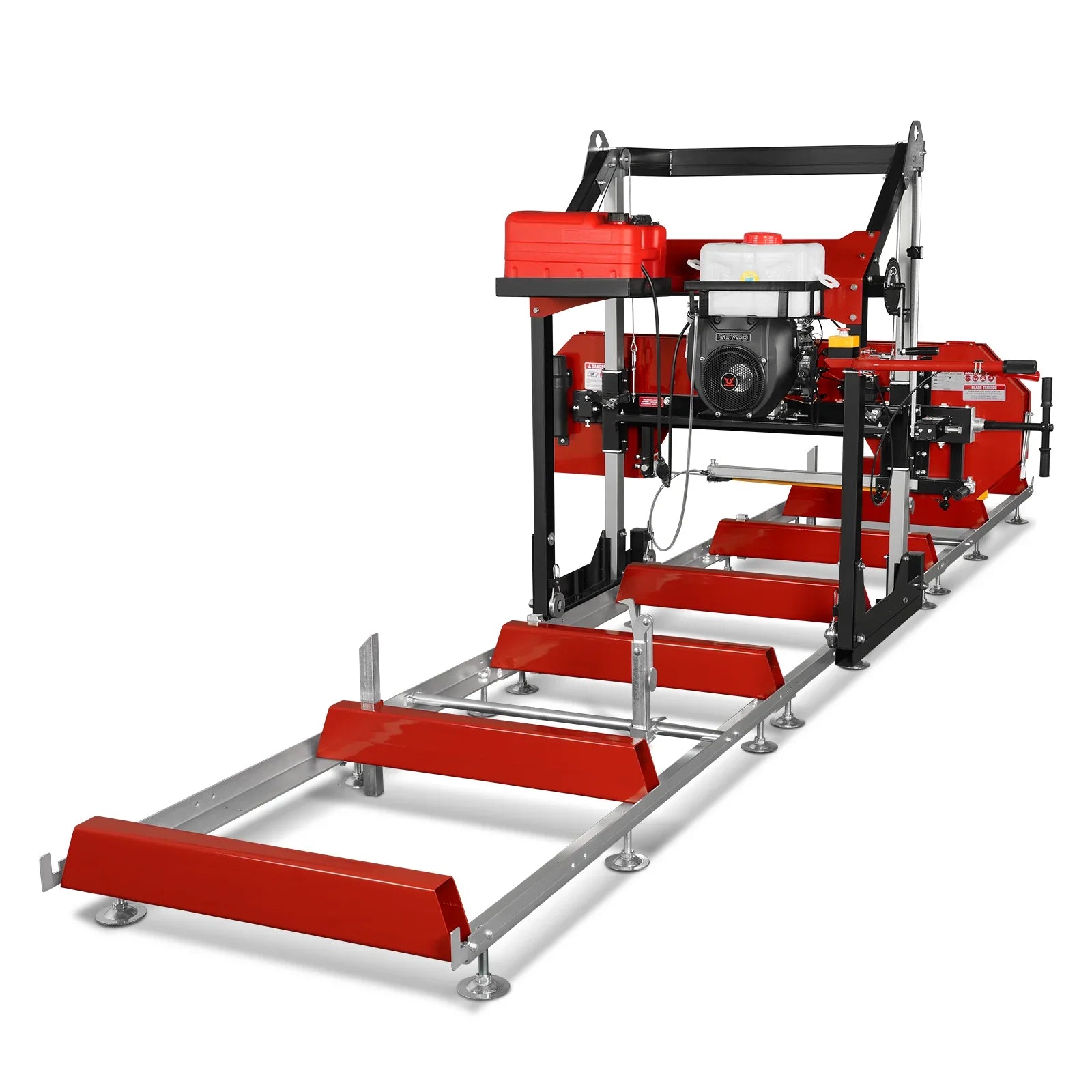

Electric Start

This sawmill is equipped with an electric-start engine, which has excellent performance, reliable quality and can be used for a long time.

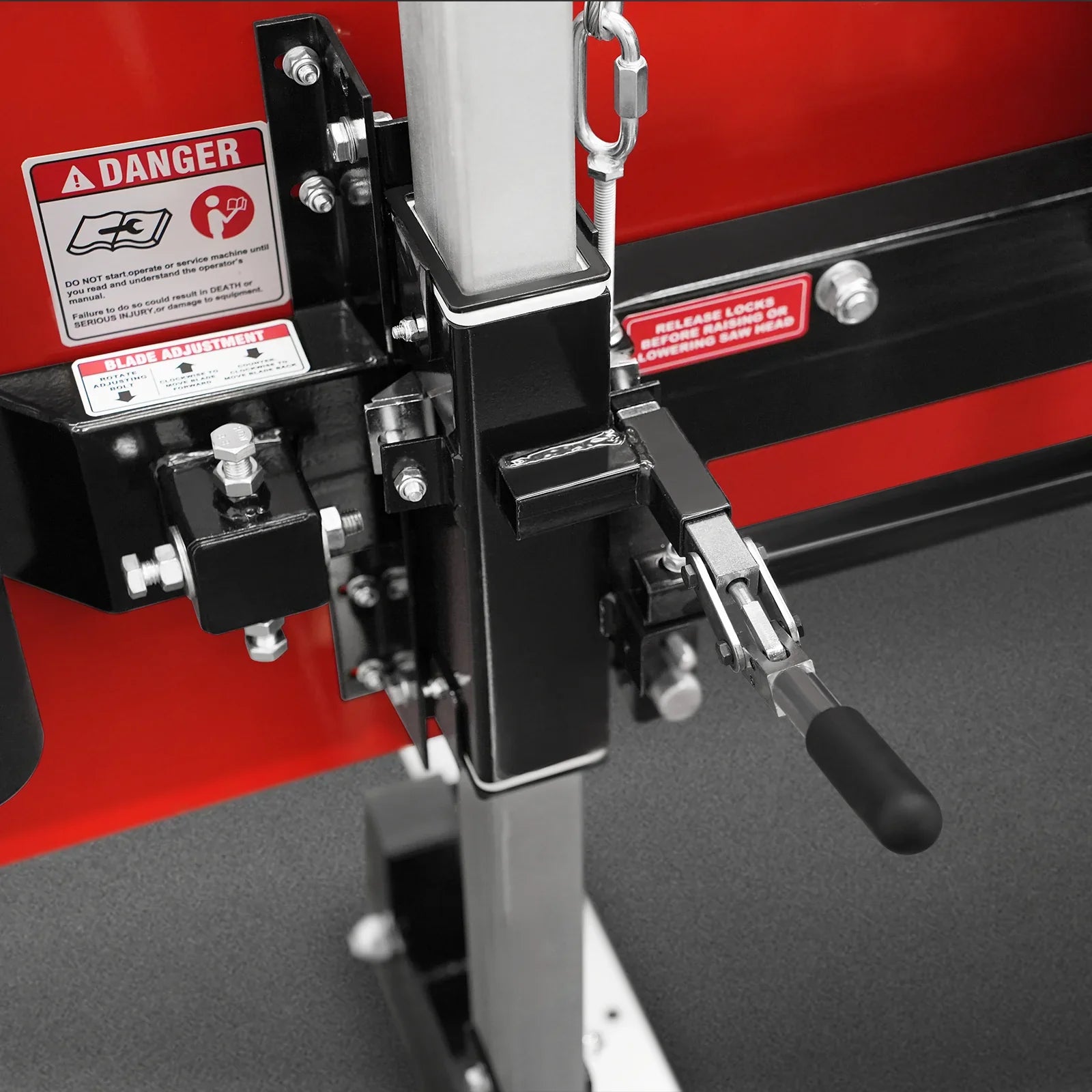

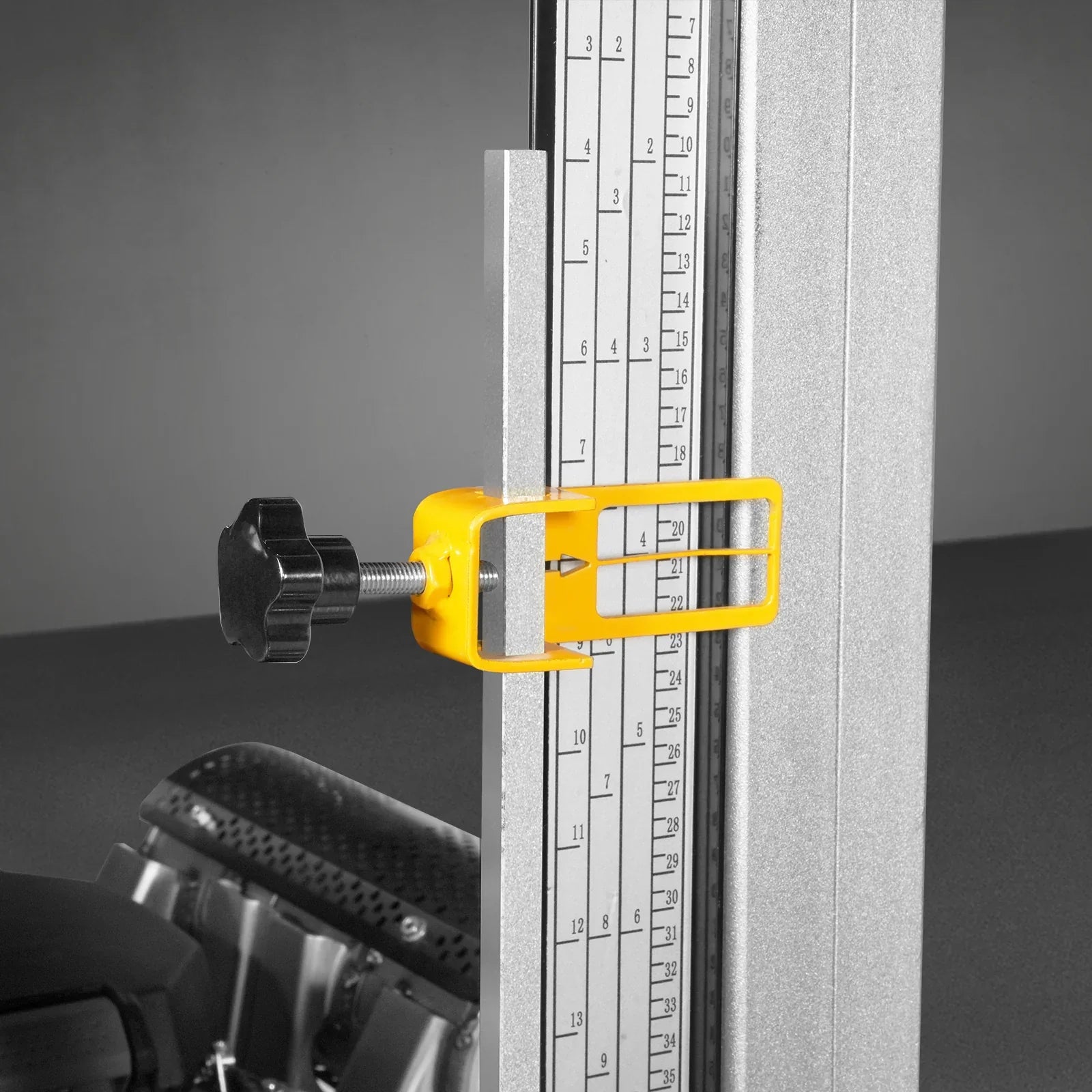

Adjustable Cutting Thickness

The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.

Maximum Log Diameter

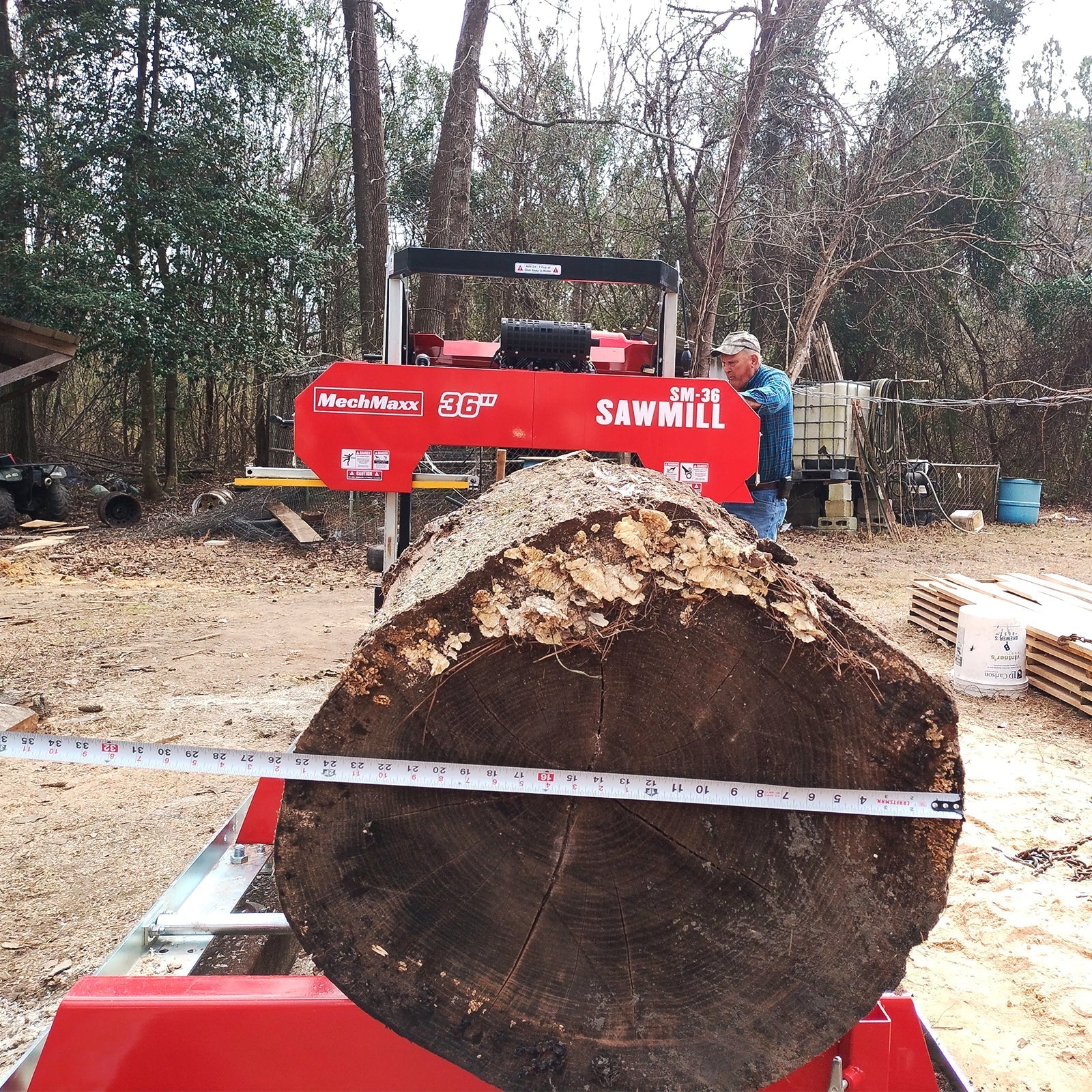

This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 36”.

Emergency Stop Button

There is an emergency stop button on the top of the log, which can stop the machine at any time in an emergency.

Maximum Cutting Width

According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 35’’.

Throttle Handle

You can control the cutting speed by pushing this handle, and you can speed up or slow down at any time, making the wood cutting process fast and efficient, and reducing the number of steps required to meet your cutting requirements for wood boards.

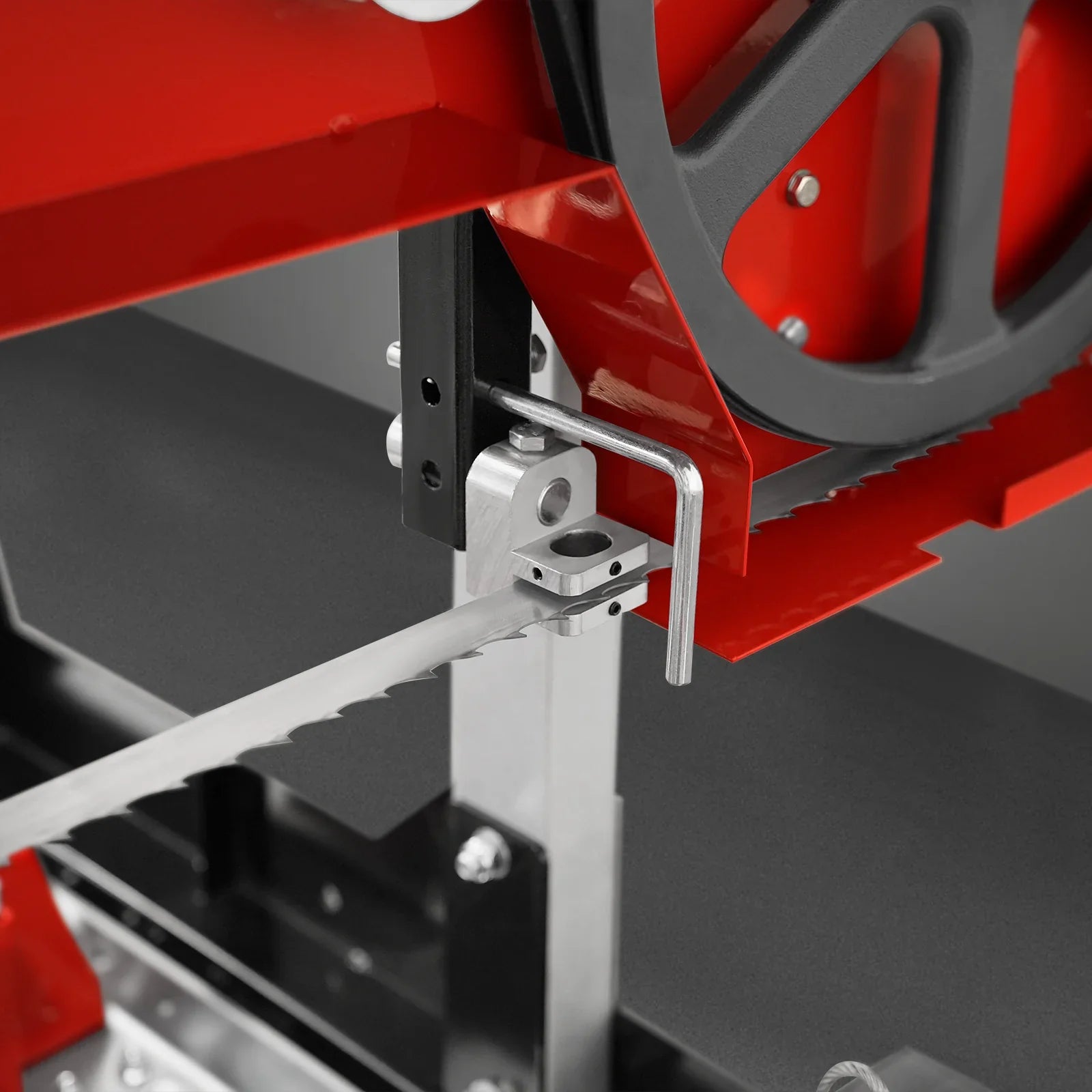

Saw Blade

The saw blade made of carbonized steel is very strong, with dimensions of 175*1.3*0.04’’, and the rotation speed can be as high as 787’’ per second, which can ensure smooth and stable cutting while reducing wood chips and increasing the amount of wood.

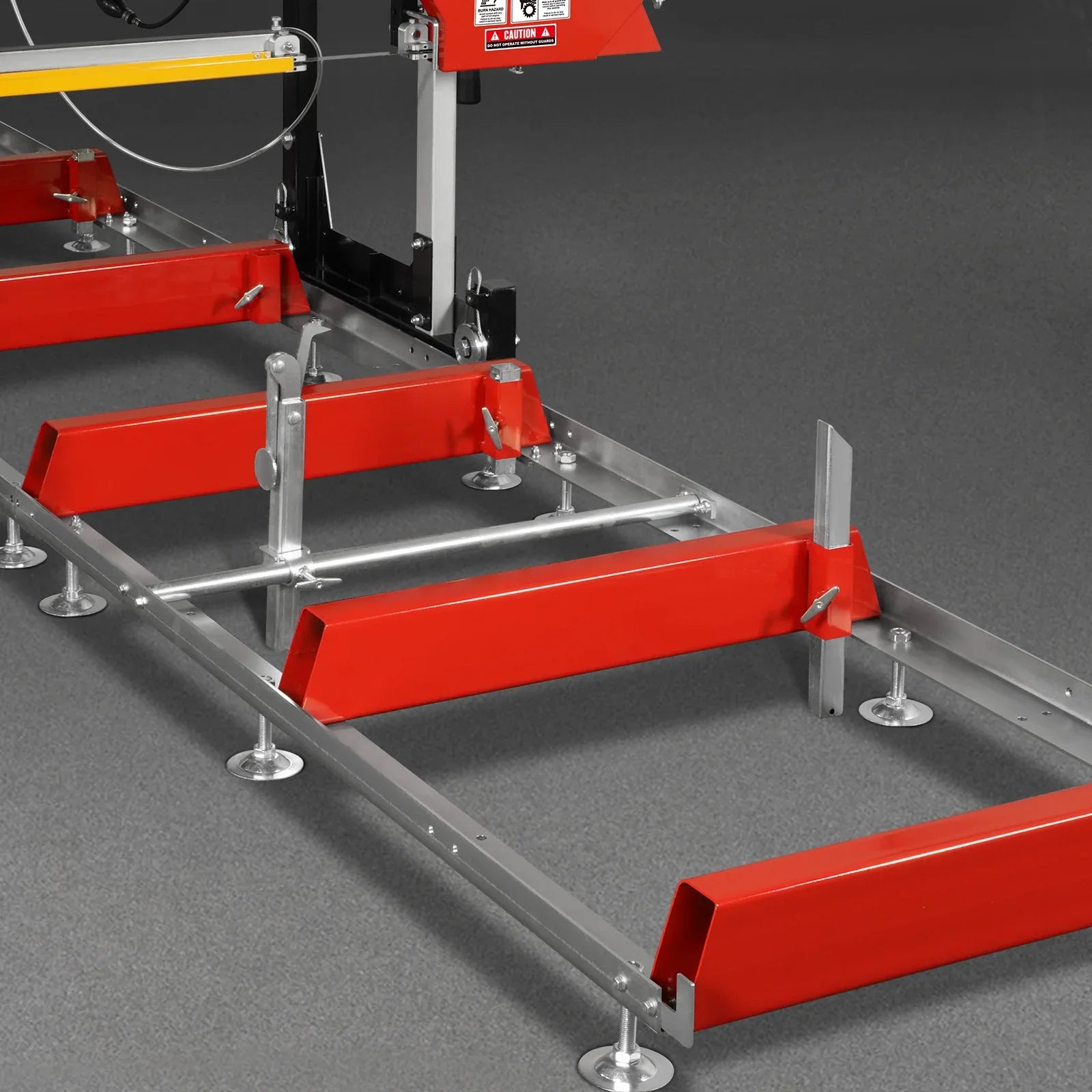

Spiral Log Clamp

The track features easy-to-use spiral log clamps to hold logs securely while milling.

Cutting Length

The logs are equipped with a 194” standard log track, and you can purchase a 78” extension track at MechMaxx according to your needs.

Product Warranty :

Product Warranty

Sawmill (SKU:150168MAX) has withstood extreme testing and comes with a 2-year warranty for its' engine, and a 2-year warranty for the machine itself.

Product Extended Warranty Plans

Our extended warranty plans provide an additional 1 to 2 years of product protection on select eligible products.

Specifications :

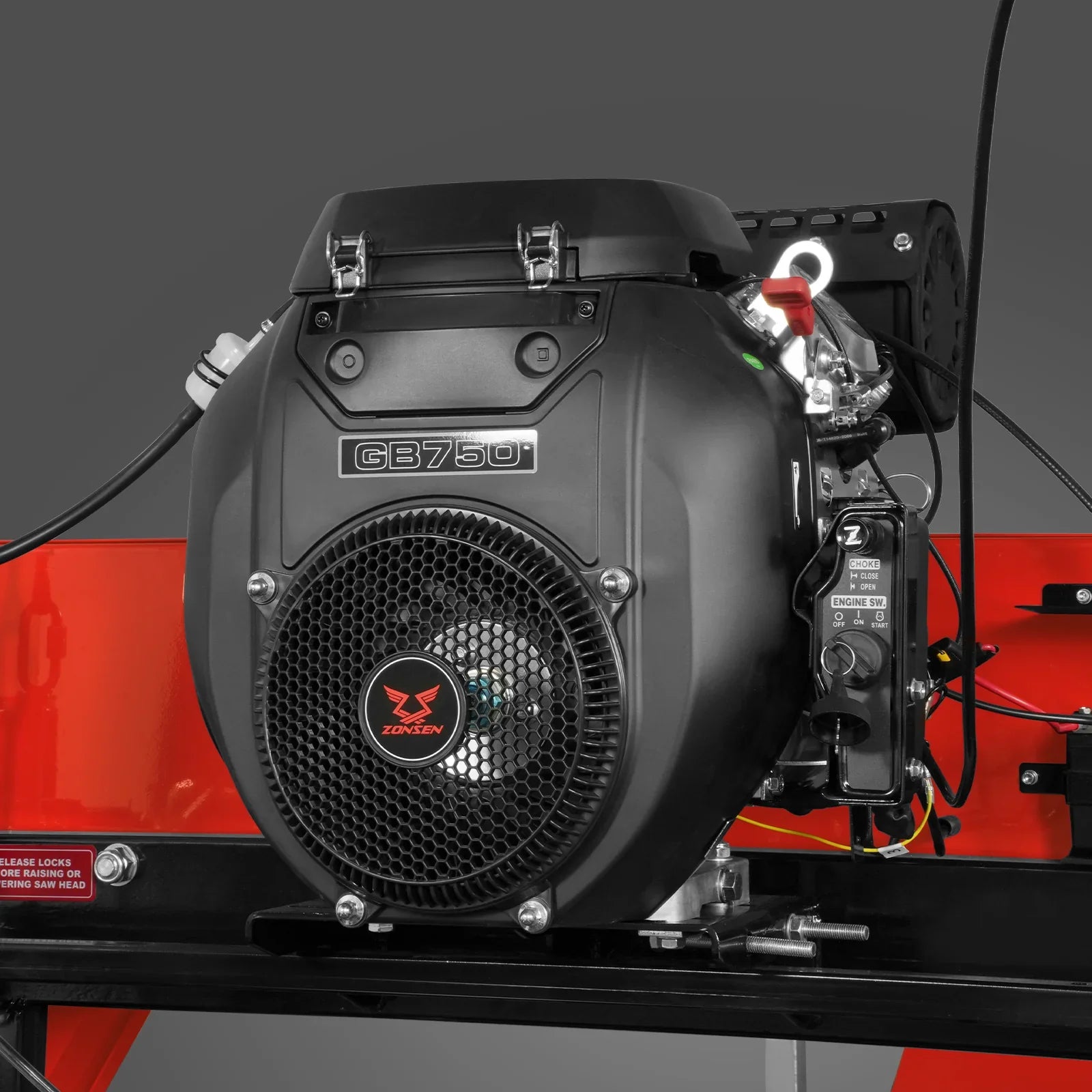

Engine	ZONSEN GB750	Lubricant Tank Size	4 gal

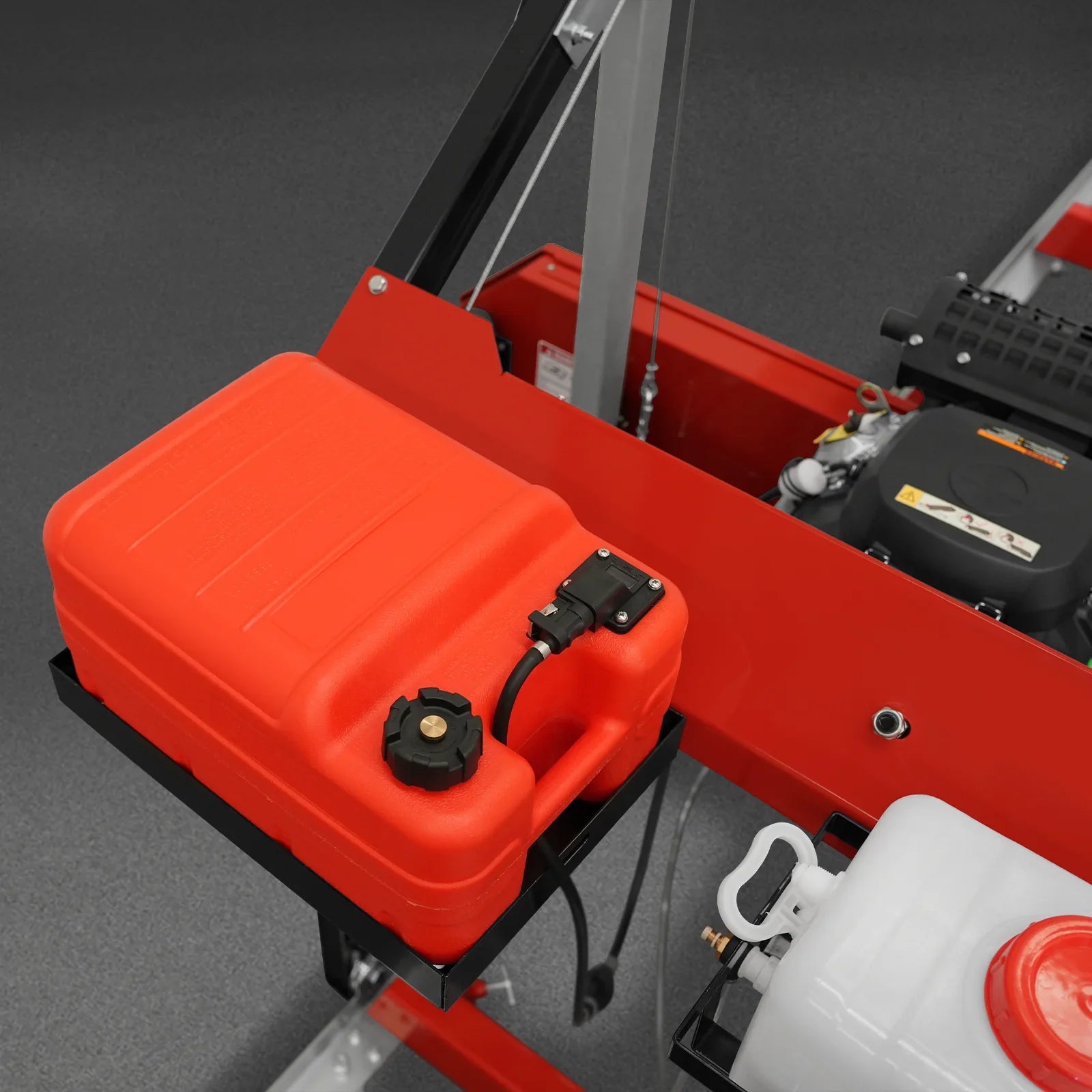

Engine Type	Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling	Fuel Tank Size	6.3 gal
Engine Displacement	750 cc	Track Load-Bearing	5 ton
Horsepower	25 HP	Track Width	3 ft 10 in

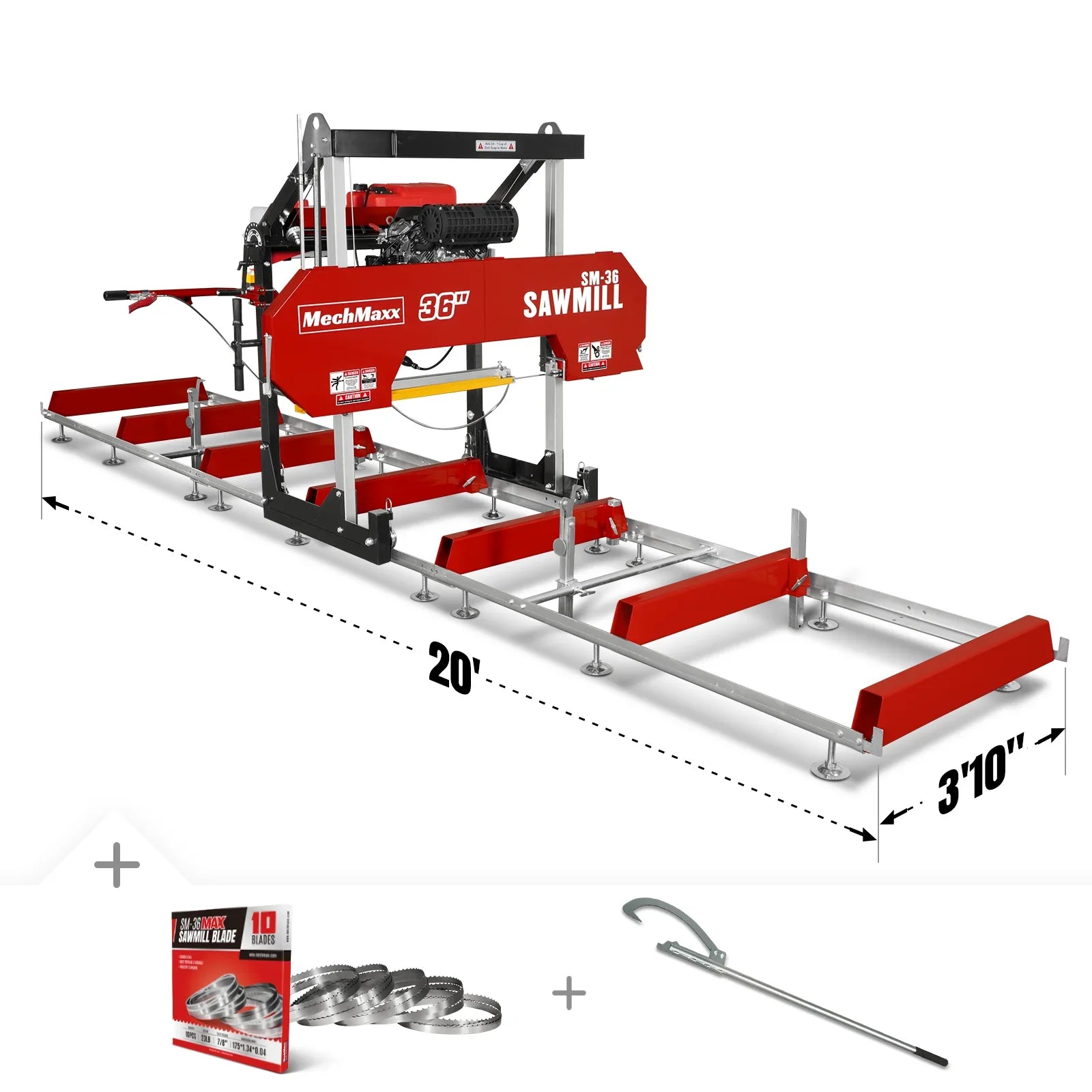

Start	E-Start	Track Length	20 ft
Log Diameter	36 in	Track Extension Length	6 ft 6 in
Max Live Edge Width	36 in	Levelling Feet	18
Standard Cutting Length	16 ft 2 in	Log Rests	2 Long and 2 Short Rests
Max Board Thickness	7 in	Log Clamps	2 x Quick Lock
Blade Engagement System	Centrifugal Clutch	Track Bunks	3 X 6 in

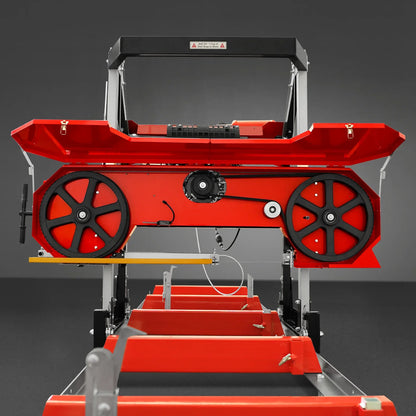

Cast Iron Bandwheel Diameter	19 in	4 Post Head Design	Yes
Blade Wheel Engagement	Belt Drive	Finish	Powder Coat Paint Galvanized Steel

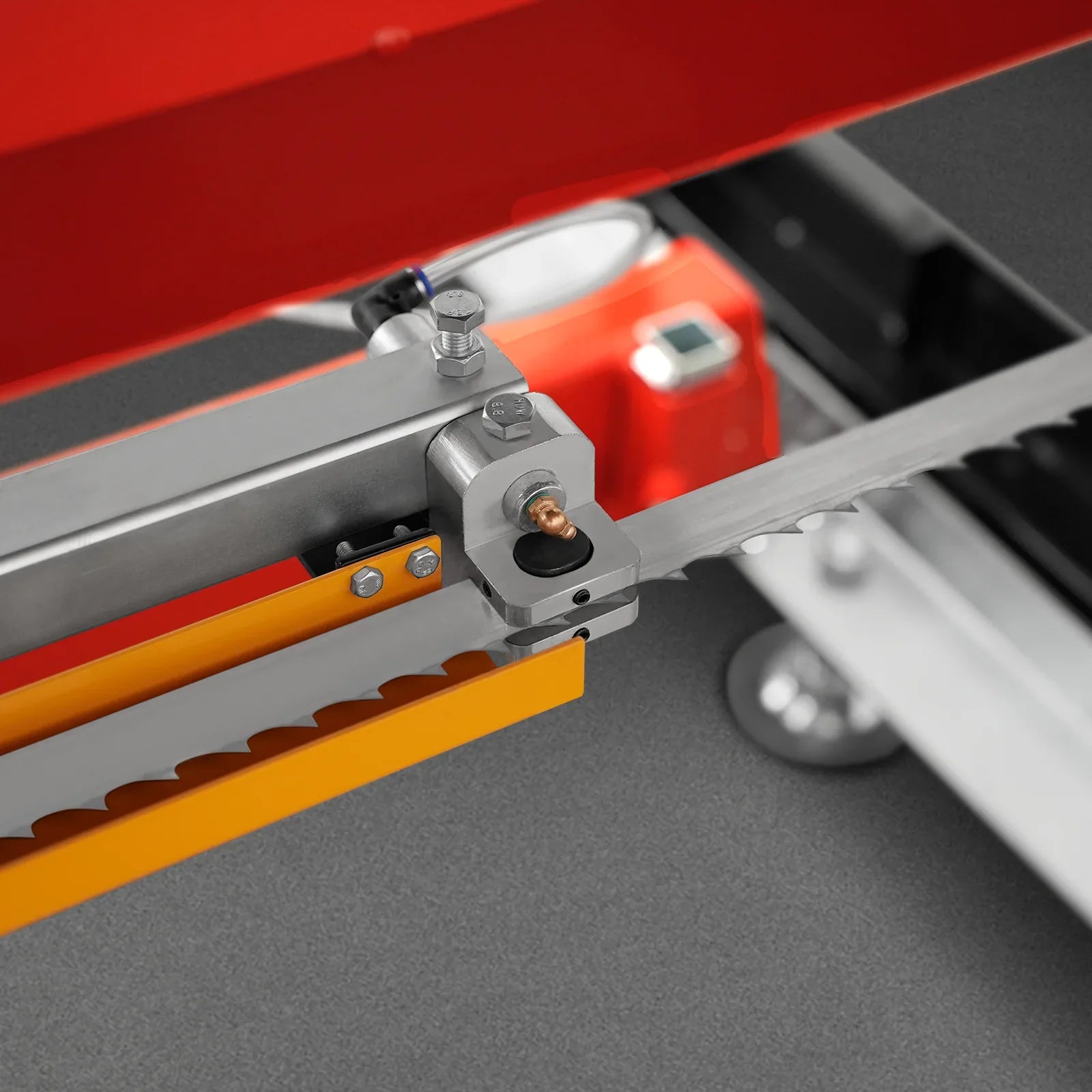

Blade Guide	By Roller	Sawmill Warranty	2 Years

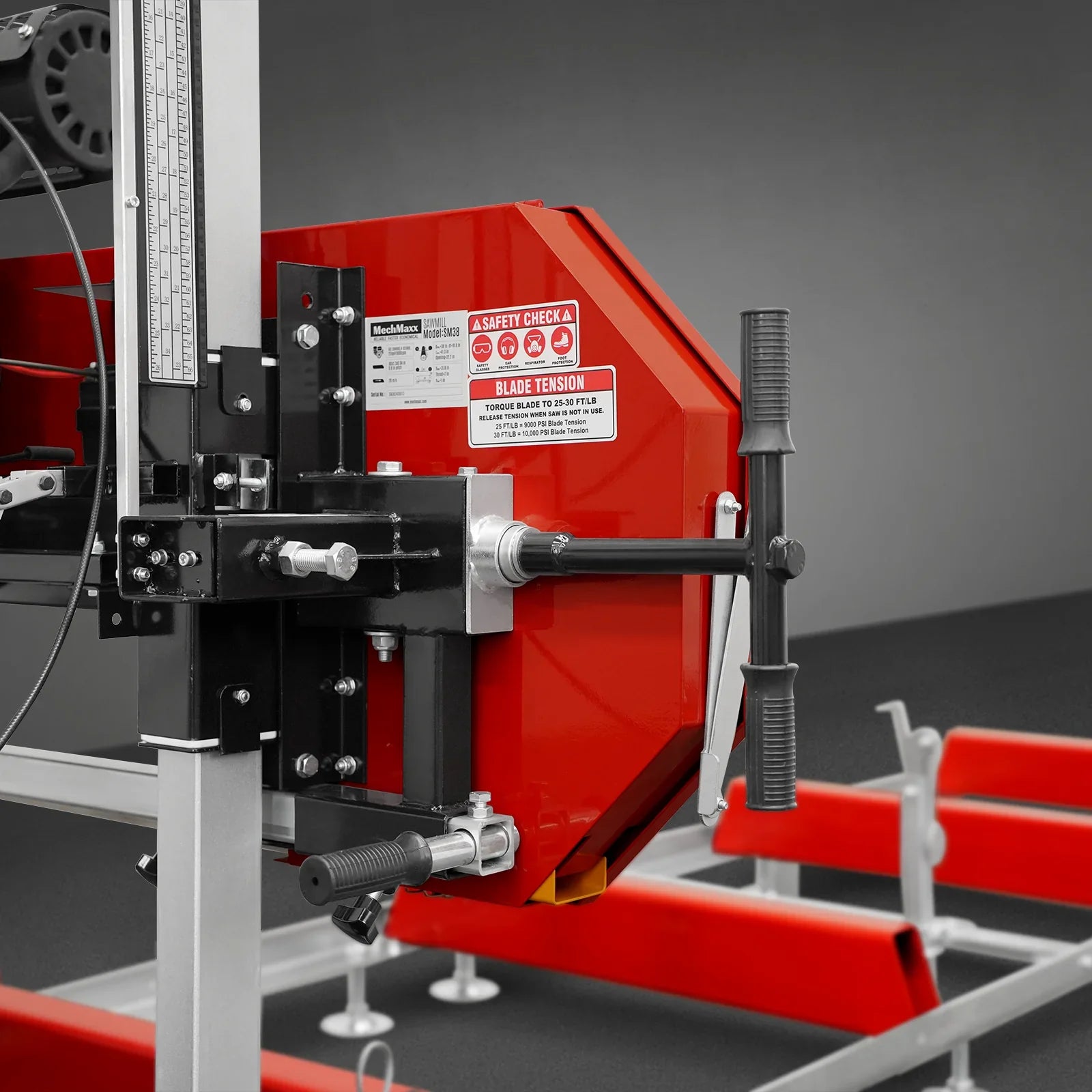

Blade Tension	By Adjustable Lever	Engine Warranty	2 Years
Blade Size	175 x 1.3 in	Package Method	Wood
Blade Pitch	7/8 in	Packing Size	90 x 28.5 x 34 in
Blade Lubrication	Water Lube - Manual Valve	Weight(N.W./G.W.)	1115/1239 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
